Integrated Piping Solutions
Your comprehensive catalog from Al-Sharq Al-Nader Company for all types of pipes, fittings, and valves.
Browse ProductsIntroduction
Welcome to the interactive product catalog for Al-Sharq Al-Nader Company for Pipes & Fittings. This application is designed to help you browse our products, access technical specifications, and understand the different applications for each product with ease. Use the menu above to navigate between sections.
About the Company
(A brief about your company, its history, and its vision in providing piping solutions...)
Quality Certificates
(Mention any certificates (ISO, ASTM, DIN, SASO) you have. This builds trust...)
How to Use the Catalog
Navigate between the main sections using the menu above. Each section contains sub-categories and tables.
Why Choose Us?
(Mention a competitive advantage here, such as: our long experience, specialized technical support, or fast delivery...)

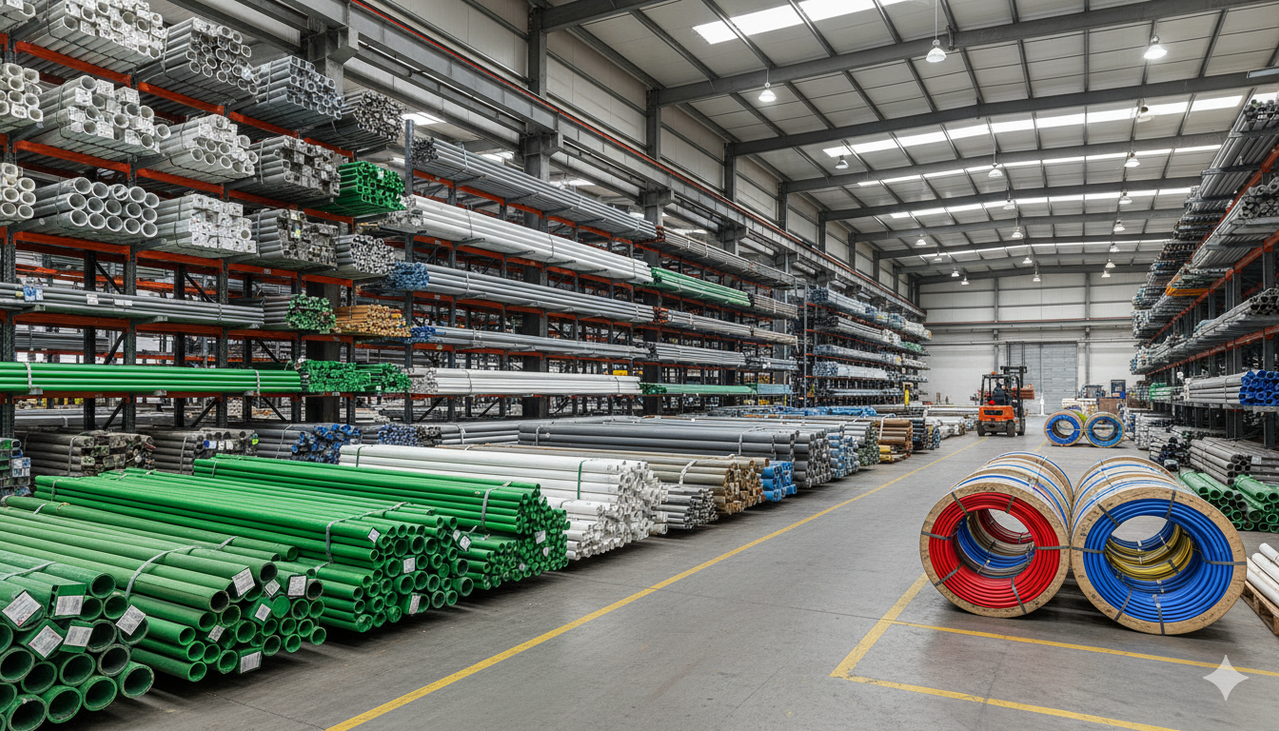

Pipes
This section displays all types of pipes we offer at Al-Sharq Al-Nader Company, categorized by material for easy comparison. You can review the technical specifications and recommended applications for each type.
PVC Pipes (Polyvinyl Chloride)
- Type: U-PVC, C-PVC
- Standards: ASTM D1785, DIN 8061
- Applications: Cold water networks, sanitation, irrigation
| Nominal Dia. (mm/in) | Outer Dia. (mm) | Thickness (mm) | Pressure Class (Schedule) |
|---|---|---|---|
| 20 mm (1/2 inch) | 21.4 | 1.8 | Schedule 40 |
| 25 mm (3/4 inch) | 26.7 | 2.0 | Schedule 40 |
PPR Pipes (Polypropylene Random)
- Standards: DIN 8077/8078
- Applications: Hot and cold water networks, heating systems
| Nominal Dia. (mm) | Outer Dia. (mm) | Thickness (mm) | Pressure Class (PN) |
|---|---|---|---|
| 20 | 20 | 2.8 | PN16 |
| 20 | 20 | 3.4 | PN20 |
Pressure Class Comparison (Dummy Data)
Fittings
At Al-Sharq Al-Nader Company, we provide a comprehensive range of fittings to meet all piping system needs. This section is categorized by fitting function (Elbow, Tee, etc.) with materials and connection types listed for each.
Elbows
- Types: 90° Elbow, 45° Elbow, Long/Short Radius
- Materials: PVC, CPVC, PPR, Stainless Steel, Carbon Steel, Brass
- Connections: Solvent Cement, Threaded, Welded
Tees & Crosses
- Types: Equal Tee, Reducing Tee, Y-Branch
- Materials: PVC, PPR, Stainless Steel, Carbon Steel...
Strainers
- Types: Y-Type Strainer, Basket Strainer
- Function: To filter impurities and protect equipment.
- Materials: Cast Iron, Stainless Steel, Brass
Expansion Joints
- Types: Rubber Bellows, Metallic Bellows
- Function: To absorb thermal expansion and vibrations.
- Materials: EPDM, NBR, Stainless Steel
Sanitary Systems
- Types: P-Traps, Siphons, Floor Drains, Cleanouts
- Function: Essential components for drainage and gray water systems.
- Materials: PVC, Cast Iron, Stainless Steel

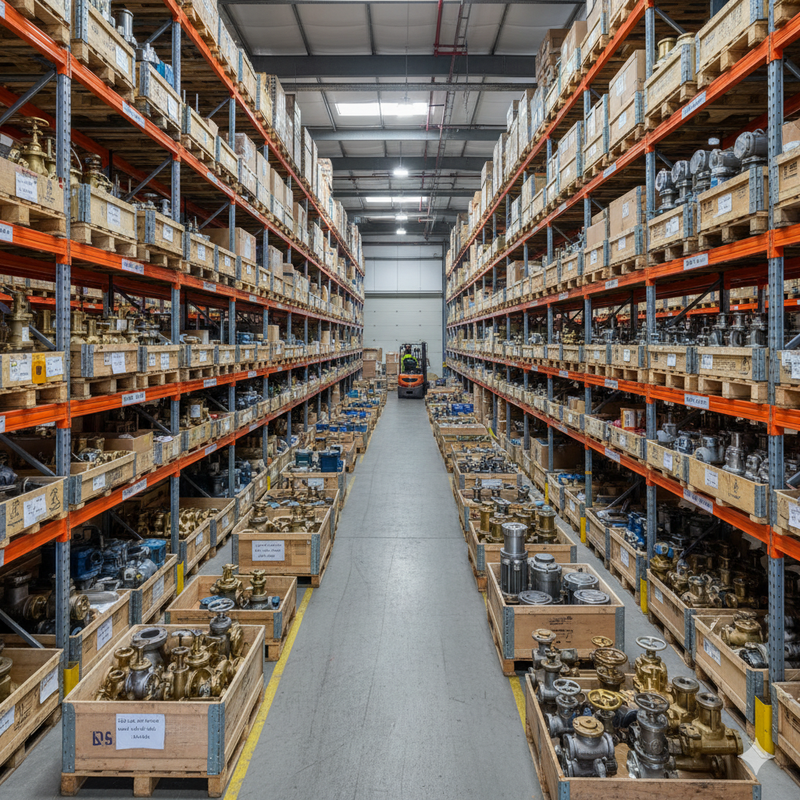

Valves
A vital section for controlling fluid flow. Al-Sharq Al-Nader Company offers main valve types used in residential and industrial applications, detailing available materials and connection types.
Ball Valves
- Types: 2-Way, 3-Way, Full Bore, Reduced Bore
- Materials: PVC, Brass, Stainless Steel
- Function: On/Off control, durable and reliable shut-off.
Gate Valves
- Types: Rising Stem, Non-Rising Stem
- Materials: Brass, Cast Iron, Stainless Steel
- Function: Full flow isolation with minimal pressure drop.
Control Valves
- Types: Globe Valves, Needle Valves, Diaphragm Valves
- Function: For precise control of flow rate or pressure.
- Materials: Stainless Steel, Cast Steel
Safety & Relief Valves
- Types: Pressure Relief Valve (PRV), Safety Valve (PSV)
- Function: To protect systems from overpressure.
- Materials: Brass, Stainless Steel
Actuators
- Types: Pneumatic Actuators, Electric Actuators
- Function: For mounting on valves (like Ball/Butterfly) for automated control.
- Materials: Aluminum, Stainless Steel Housing

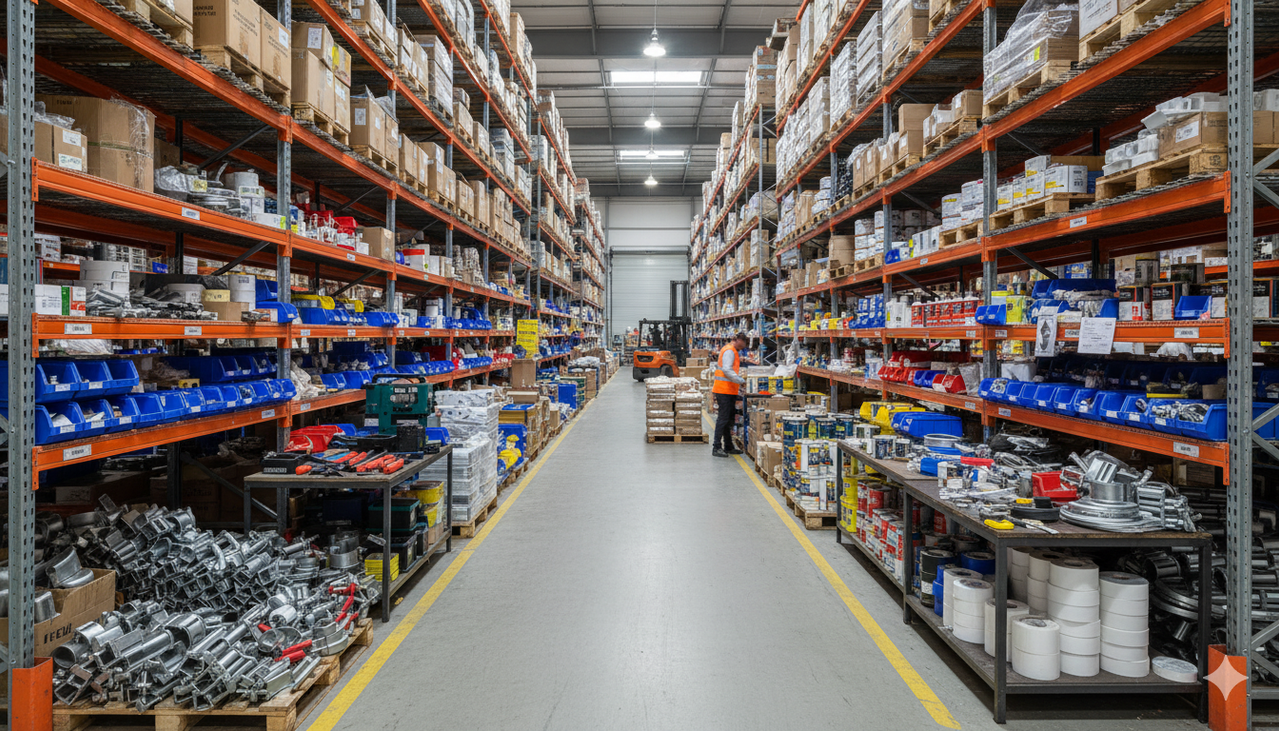

Accessories & Support Systems
To ensure an integrated and efficient piping system, Al-Sharq Al-Nader Company provides all necessary accessories from support systems, adhesives, and gaskets. This section covers the tools and materials needed for proper installation.
Pipe Support Systems
- Types: Clamps, Hangers, Support Rods
- Materials: Galvanized Steel, Stainless Steel
- Function: Secure and support pipe alignment.
Gaskets
- Materials: EPDM Rubber, NBR, Non-Asbestos
- Types: Flat Ring, Spiral Wound
- Function: Leak-proof sealing for flanges.
Adhesives & Sealants
- Types: PVC/CPVC Cement, Teflon Tape, Thread Sealant
- Application: Solvent welding and thread sealing.
Tools
- Types: Pipe Cutters, Chamfering Tools, PPR Welding Machines
- Function: Preparation and installation of piping systems.

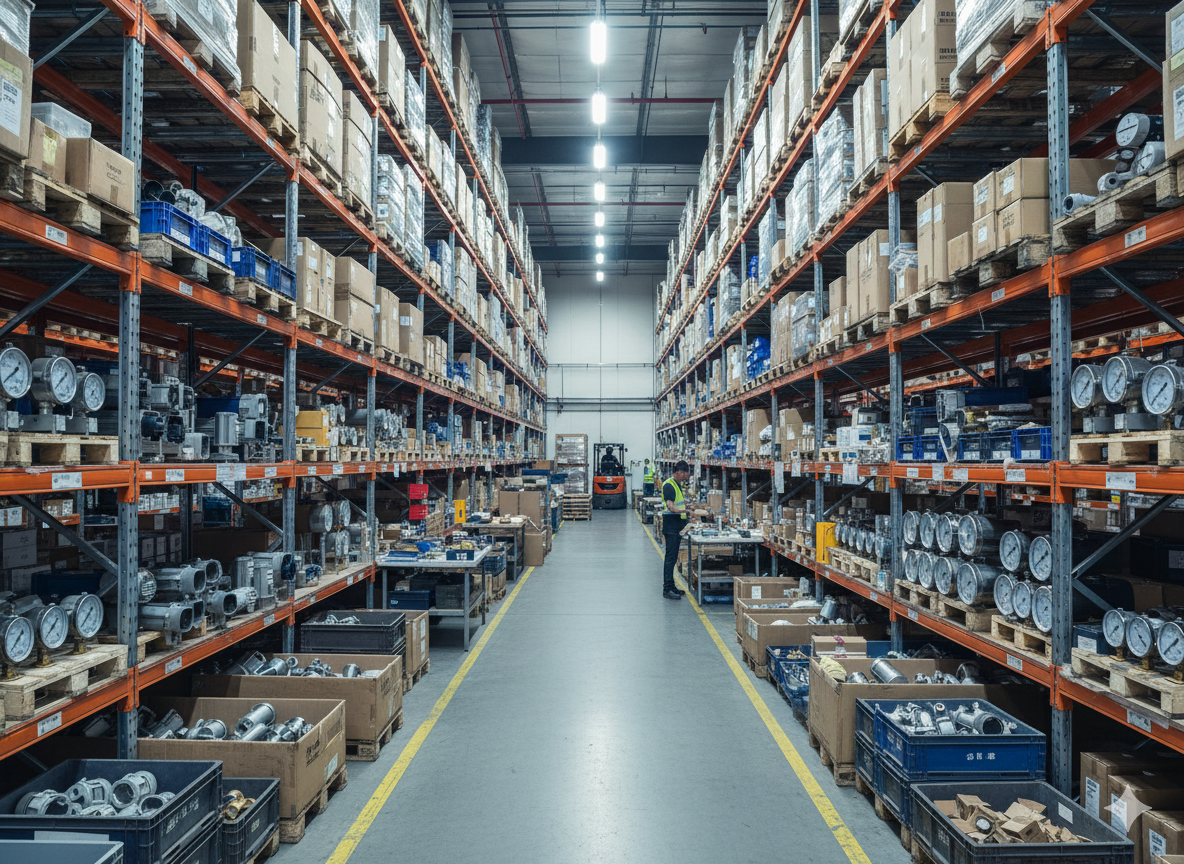

Instrumentation
A specialized section from Al-Sharq Al-Nader Company offering precision instruments used to monitor and measure vital variables in piping systems, such as pressure, temperature, and flow rate.
Pressure Gauges
- Types: Bourdon Tube, Diaphragm Seal
- Materials: Stainless Steel Casing, Brass/SS internals
- Connection: Bottom Entry NPT/BSP, Back Entry
Temperature Gauges
- Types: Bimetallic Thermometers, RTD Sensors, Thermocouples
- Connection: Various stem lengths, back or adjustable entry
- Materials: Stainless Steel Stem & Case
Flow Meters
- Types: Variable Area (Rotameters), Turbine Meters, Ultrasonic Meters
- Function: To measure the volume of liquid or gas passing through the pipe.
- Output: Analog 4-20mA or Digital Display
✨ Project AI Assistant
Have a project and need a recommendation?
Al-Sharq Al-Nader's AI Assistant will suggest the right materials for you.
Analyzing your request...
Technical Data & Appendices
This section is your primary technical reference from Al-Sharq Al-Nader Company. Here we explain how pipe performance is affected by conditions like temperature and chemicals. The interactive charts below visualize these relationships.
✨ Chemical Compatibility Checker
Enter the chemical and pipe material to see their compatibility rating.
Pressure Derating Curve with Temperature (Dummy Data)
This chart shows how the allowable pressure (PN) for pipes (like PPR) decreases as the fluid temperature rises. Hover over the line to see the values.
Glossary of Terms
- SDR (Standard Dimension Ratio): Used for PE pipes.
- PN (Pressure Nominal): Nominal Pressure (Bar).
- Schedule (Sch): Pipe wall thickness standard (used for PVC and Steel).
